Optical Shutters

Our comprehensive line of cost-effective laser shutters is designed to meet the diverse needs of various applications, providing reliable performance and peace of mind.

SH-10 Single blade spring-loaded laser shutter

SH-10

Spring-loaded laser shutter

Aperture (mm)
13 dia
Resp. time (mSec)
12 (with DSH-10)
SH-20 Large aperture spring-loaded laser shutter

SH-20

Large aperture spring-loaded laser shutter

Aperture (mm)
25 dia
Resp. time (mSec)
15 (with DSH-20)

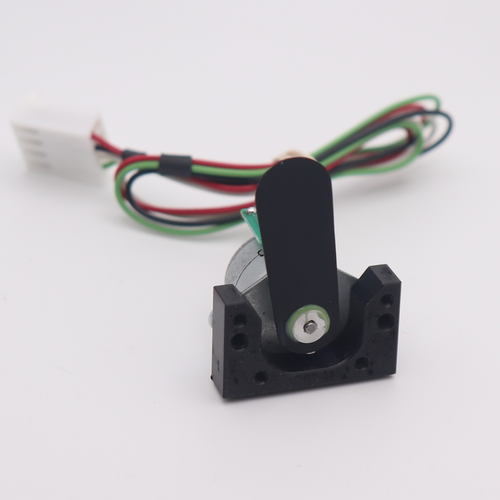

SH-35 Miniature low viration shutter

SH-35

Miniature low viration shutter

Aperture (mm)
9 dia
Freq. (variable)
DC to 50 Hz
Resp. time (mSec)
5

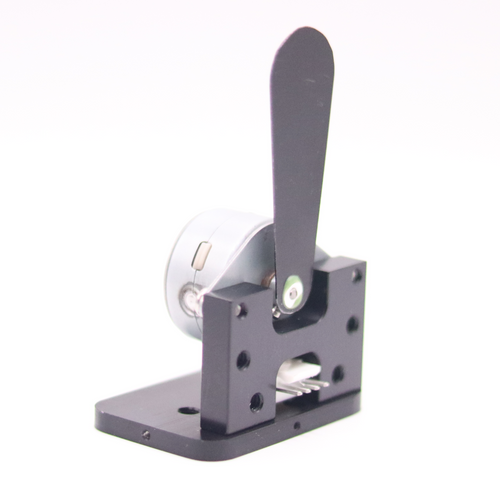

SH-65 Miniature low viration shutter

SH-65

Low vibration shutter

Aperture (mm)
16 dia
Freq. (variable)
DC to 25 Hz
Resp. time (mSec)
10
SH-66 Low vibration pulse picker

SH-66

Low vibration pulse picker

Aperture (mm)
12.6 dia
Freq. (variable)
DC to 25 Hz
Resp. time (mSec)
15
CH-60 Low frequency shutter

CH-60

Low frequency shutter

Aperture (mm)
6.3x11.4
Freq. (variable)
DC to 50 Hz
Resp. time (mSec)
10
CH-61 Low frequency shutter

CH-61

Low frequency shutter

Aperture (mm)
8.7 dia
Freq. (variable)
DC to 50 Hz
Resp. time (mSec)
10
