SH-65

Low-vibration Optical Shutter

Features and Advantages

Ultra low-vibration shutter
Aperture size: 0.65" (16mm) dia., boxed version aperture size: 0.56" (14mm) dia.
No clicking or knocking noise (no hard stop)
Does not create shock and vibration
10 mSec response time
Can be used as a low frequency chopper
DC to 25 Hz frequency response
Can be stopped in the OPEN or CLOSE position
Long life: 100 million cycles min.
Jitter free operation
Dark blade, bright optional
Low cost
Simple to operate
Easy to integrate into OEM products
Special OEM pricing
Patented technology

Product Options

SH-65

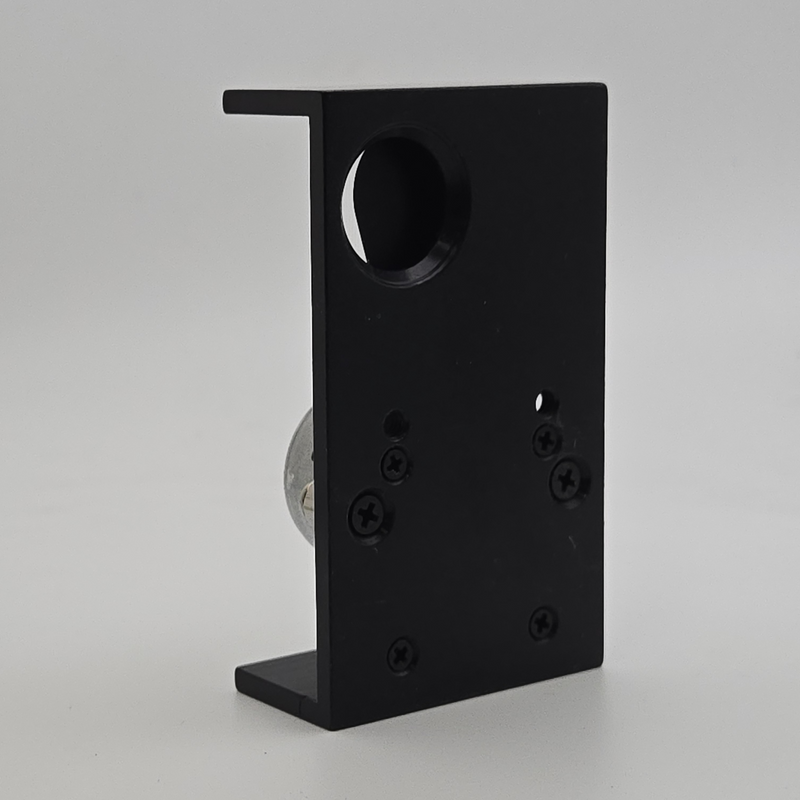

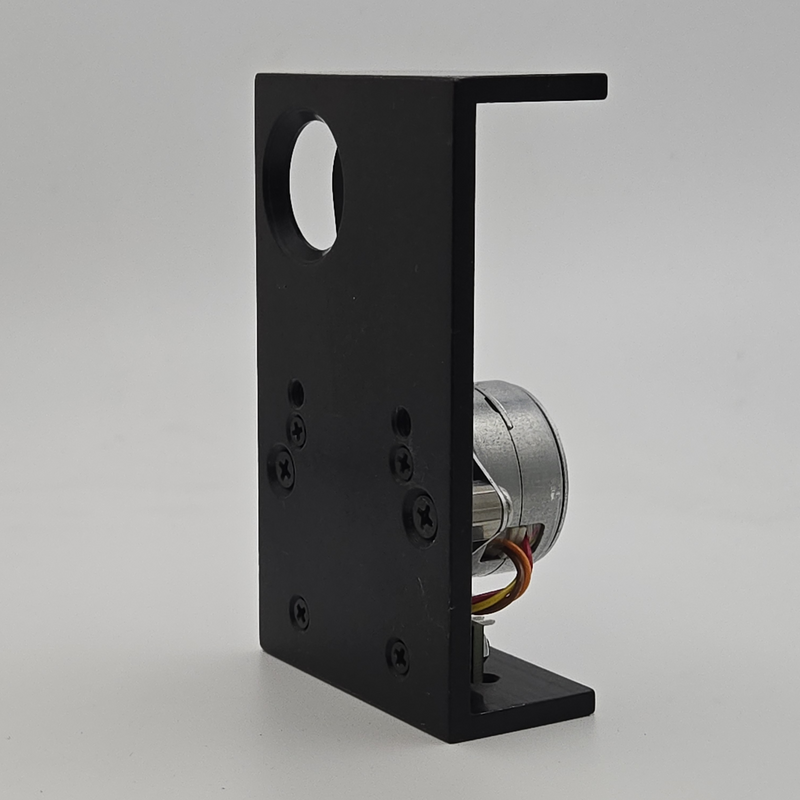

Shutter is mounted on a frame that allows horizontal and vertical mounting.

SH-65-M

Shutter comes with a mounting plate and allows horizontal and vertical mounting.

SH-65-MP

Shutter can be mounted directly on an optical table.

SH-65-B

Shutter is boxed in an aluminum box with a 0.56" (14mm) through hole.

-BARE

Shutter blade is bare aluminum.

-BRIGHT

Shutter blade is bright nickel plated aluminum.

Description
Drawings
Documents

Mechanical Light Shutter/Chopper for Ultra-Low Vibration and Precision Optics

The SH-65 device is a compact and cost-effective mechanical light shutter/chopper with ultra-low vibration performance. It is engineered to operate on optical bench setups, making it an invaluable component for vibration-sensitive environments demanding vibration-free conditions. Whether integrated into instruments or OEM products, this unit stands out for its ease of use and exceptional cost-effectiveness, particularly in high-volume applications.

Key Features

Rotary actuator driven with a 0.65" (16mm) aperture.
Constructed with a 0.010" thick black anodized aluminum blade. Other thicknesses are available.
Swift transition time of 10 milliseconds between end positions, accompanied by minimal shock or vibration.
Total blade swing covers 30 degrees.
Smooth transitions between open and closed positions without any clicking noise or hard stops.
Other blade finishes available, such as bare aluminum or bright nickel plating.

Versatile Functionality

In addition to its function as a mechanical light shutter, the SH-65 excels as a low-frequency optical chopper, offering frequencies ranging from DC to 25Hz.

Technical Specifications (when used with DSH-65 Driver)

Aperture Size	SH-65, SH-65-M and SH-65-MP: 0.65" (16mm) dia. SH-65-B boxed version aperture size: 0.56" (14mm) dia.
Frequency Range	DC to 25 Hz
Response Time	10 mSec (from open to close position, and vice-versa)
External input	TTL level (high = open, low = closed)
Frequency stability	0.1% min in internal mode, 0.005% min in external mode
External Input	DC to 25Hz TTL level input; 5V ("OPEN") to open the shutter; 0V ("GND") to close the shutter
Settling Time to External TTL Input	10 mSec
Monitor output	TTL level (high = open, low = closed)
Operating temperature	0 to 65 °C
Dimensions	3.93" x 2.6" for PCB version 5.3" × 5.3" × 2" for cased versions

DSH-65 Driver: Tailored Control for Model SH-65 Shutter/Chopper

The DSH-65 driver is purpose-built to provide precise control over the SH-65 shutter/chopper. It operates in two distinct modes:

Internal Mode: Utilize the SH-65 as an optical chopper, with adjustable chopping frequencies ranging from 0.5Hz to 25Hz, controlled by the internal oscillator.
External Mode: Employ the SH-65 as either an optical shutter or chopper. A TTL input manages the blade position, with "High" (5V) keeping the shutter open and "Low" (0V) keeping it closed. The shutter responds swiftly to the TTL input within 10 milliseconds. The maximum TTL input frequency supported is 25Hz.

Ordering Information

Example 1: Part No. SH-65 with DSH-65-PC This part number specifies the model SH-65 shutter, with a 0.010" thick black anodized aluminum blade mounted on a frame for horizontal and vertical mounting. The DSH-65 driver is a 3.93" x 2.6" printed circuit board level driver, operating from an external 15 VDC power supply.

Example 2: Part No. SH-65-M with DSH-65-220-BNC This part number specifies the model SH-65 shutter, with a 0.010" thick aluminum blade and base for horizontal and vertical mounting, without a front plate. The DSH-65 driver is cased (5.3" x 5.3" x 2") 220VAC, with a selector switch for operating from a line voltage of 220Vac, with a BNC connector for TTL input.

Example 3: Part No. SH-65-MP-BRIGHT with DSH-65-110 This part number specifies the model SH-65 shutter, with a 0.010" thick bright nickel plated aluminum blade and mounting plate. The DSH-65 driver is cased 5.3" x 5.3" x 2", operating from a line voltage of 110 VAC.

Example 4: Part No. SH-65-B-BARE with DSH-65-110/220-BNC This part number specifies a boxed SH-65 shutter with a 0.010" thick bare aluminum blade. The DSH-65 driver is cased 5.3" x 5.3" x 2", with a selector switch to operate from either 110 VAC or 220 VAC line voltage with a BNC connector for TTL input.
